Your location:Home -> Product -> 1.50mm Pitch
  • A1505(CZH)alternative CZH 1.50mm Housing Terminal Cable A1505(CZH)alternative CZH 1.50mm Housing Terminal Cable

A1505(CZH)alternative CZH 1.50mm Housing Terminal Cable

Product Consulting TelProduct Consulting Tel139-2689-6945

PhonePhone0769-85312070

E-mailE-mailjames@csg-china.com

prodetail_ewmPlease use WhatsApp or enterprise WhatsApp to scan the code
prodetail_ewmPlease use wechat or enterprise wechat to scan the code

Detailed Information

Specifications:

Rated current: 2A AC, DC

Rated voltage: 100V DC

Temperature range: -40 deg C to +105 deg C

Contact resistance: 30m Omega Max.

Insulation resistance: 500M Omega Min.

Voltage: 500V AC/minute

Housing: PA66 94V-0 White

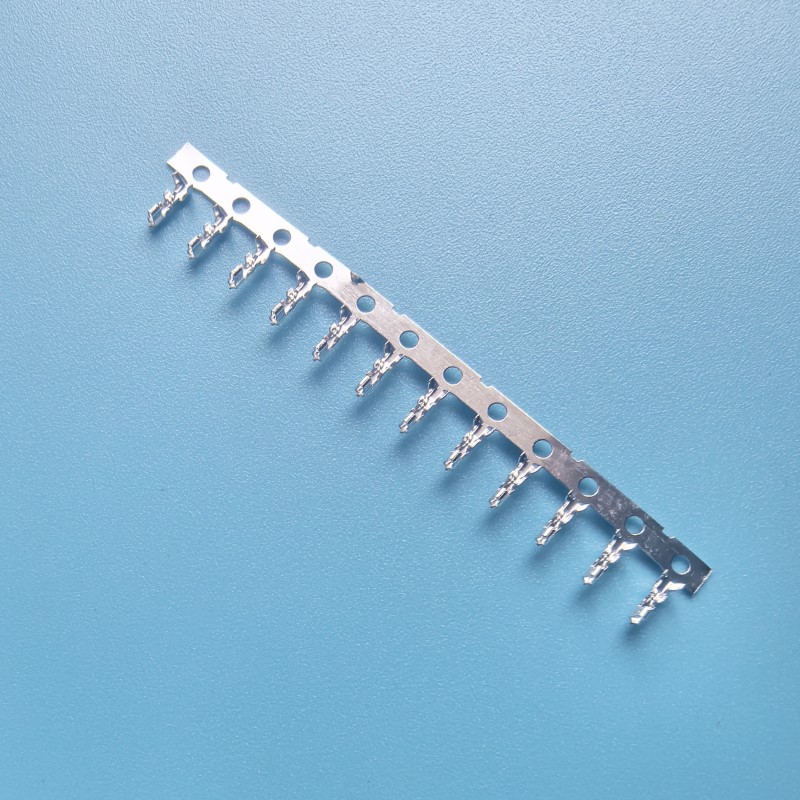

Terminal material: phosphor copper tin plating/gold plated
