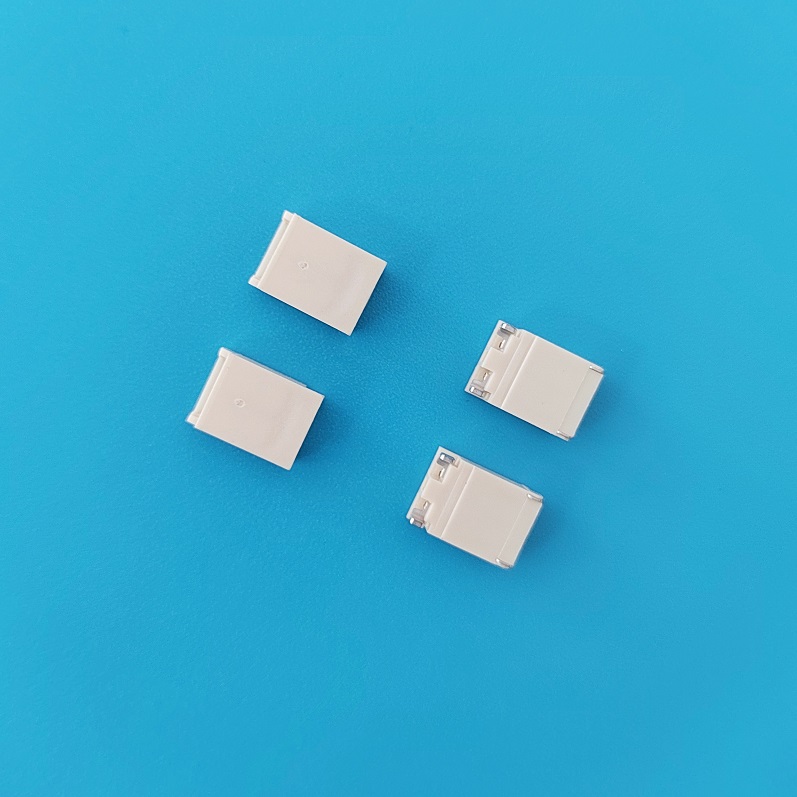

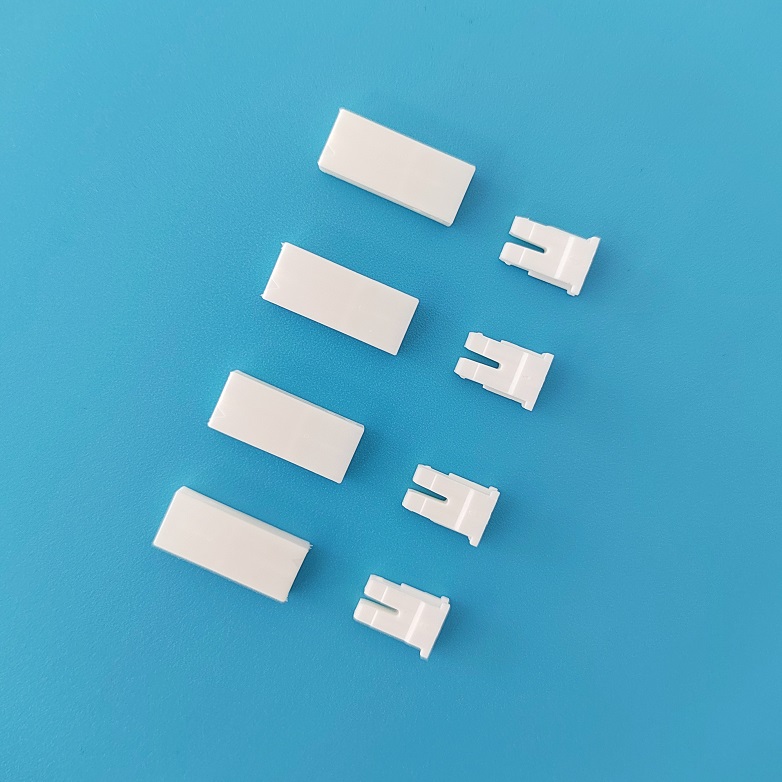

C3500(BH)alternative BH 3.50mm Housing Terminal Wafer

Product Consulting TelProduct Consulting Tel139-2689-6945

PhonePhone0769-85312070

E-mailE-mailjames@csg-china.com

prodetail_ewmPlease use WhatsApp or enterprise WhatsApp to scan the code
prodetail_ewmPlease use wechat or enterprise wechat to scan the code

Detailed Information

Specifications:

Rated current: 5A AC, DC

Rated voltage: 1400V DC

Temperature range: -40 deg C to +105 deg C

Contact resistance: 20m Omega Max.

Insulation resistance: 1000M Omega Min.

Withstand voltage: 3800V AC/minute

Plastic shell material: PA66 94V-0 natural color

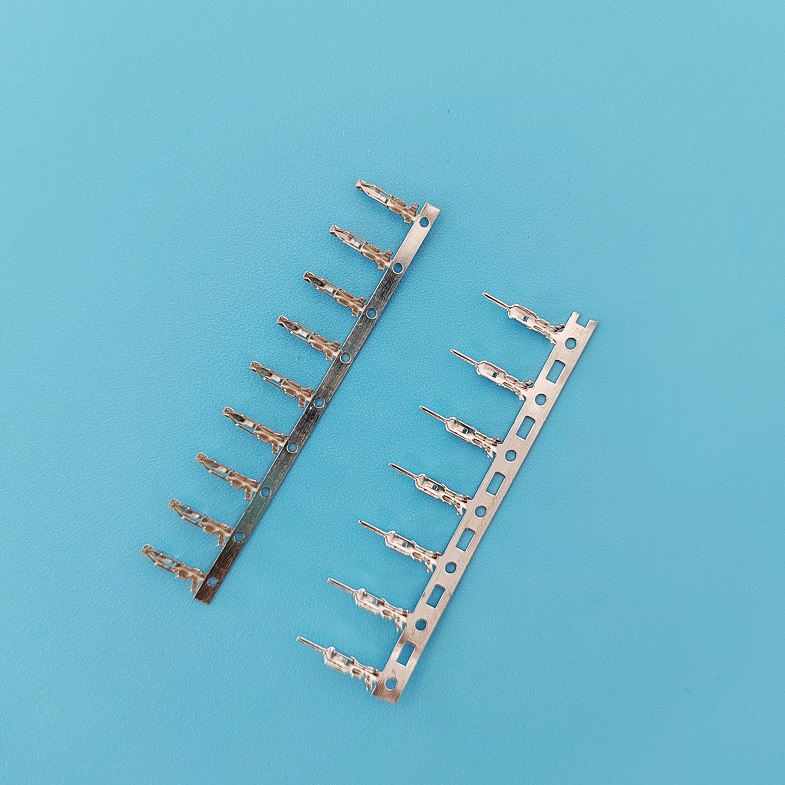

Terminal material: phosphor copper tin plating

SMT pin body material: PA6T 94V-0 color

PIN material: brass tin plated

Ground lug material: brass tin plated
