CSG Yinglian Electronics launches NSHD series connector with 1.00mm spacing double row belt and external buckle

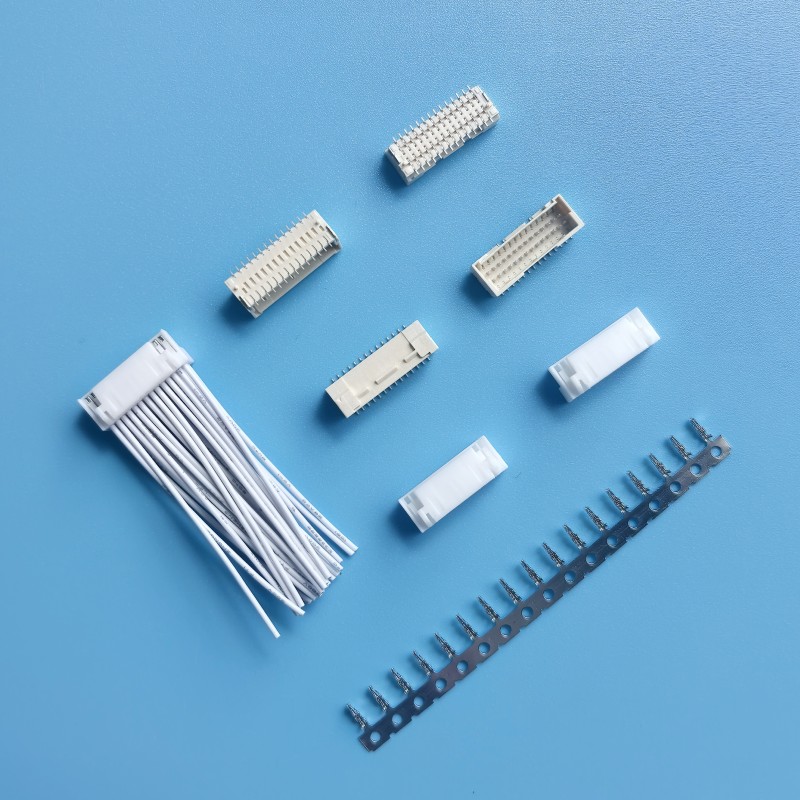

Many applications require wire to board connectors that are ultra small in size and provide design flexibility. The NSHD series wire to board and crimping connectors have a spacing of 1.00 mm and are molded from RoHS compliant 94V0 polyamide material. The polarized NSHD series housing adopts a safety locking device to prevent accidental disconnection of 2X4 to 2X20, 2X25 positions, and release of components from the docking joint. These thin connectors have a rated current of 1.0 A AC/DC at 50 V AC/DC (using 28-32 AWG) and a side inlet height of only 7.10-7.60 mm. The operating temperature range of this series is -25 ° C to+85 ° C, including temperature rise when current is applied.

With the complexity of the market usage environment, the requirements for electronic products are becoming increasingly high. At the same time, the performance requirements for connectors are becoming increasingly high, so when choosing connectors, people tend to prefer connectors with buckles. CSG will continuously develop buckle connectors with different spacing .....
